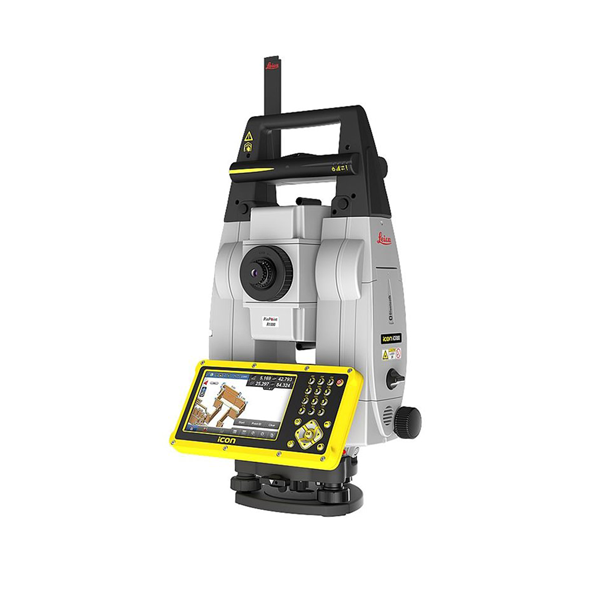

Leica iCON iCR80 Robotic Total Station

Achieve more layout points all day every day

The Leica iCON iCR80 construction total station keeps its ‘eye’ on only one thing: the user’s target. Layout more points per day thanks to ATRplus, the most robust automated-aiming, lock and re-lock technology in the market. iCR80 is especially useful in congested sites with many distractions, such as reflections, machines and people moving around. Challenging and changing site conditions should not be an obstacle.

The iCON iCR80 allows users to:

  • Layout lines for footings or chalk line for formwork on foundation
  • Layout points on blinding layer, such as pipe insert or cut-outs before pouring concrete
  • Layout true design objects based on federated and enriched models
  • MEP layout of wall penetrations for pipes, hanger locations for HVAC and duct work, inserts and slits for sheet metal work
  • Control a wide variety of construction machines, such as curb and gutter or milling machines, asphalt or concrete pavers, and graders or dozers

The iCON iCR80 guarantees layout efficiency with the most reliable, simple and automatic set up procedure, industry-leading prism lock, and flexible handling of fully rendered 3D design models in the field. This sophisticated, one-person total station offers an ‘all-in-one’ solution for every purpose – especially the difficult ones, allowing you to speed up your workflow.

The iCON iCR80 total station is fully compatible with:

The iCON iCR80 features:

  • Faster prism search by patented technology, PowerSearch
  • Stable data communication with long-range Bluetooth® (up to 400m)
  • Easy hand-over control from pole to machine and vice versa
  • ATRplus technology, maximising the total station’s ability to remain locked on your target for highest point-to-point layout speed
  • “Tune out targets” feature to ignore other distractions in the field
  • Fastest re-lock in case of interrupted line of sight

Ability to layout complex designs

Laying out intricate designs is a difficult task construction crews face every day. Complex geometries must be simplified by converting them to lines and rectangles, which means the staked point will not represent the true design when brought to the field. With iCON build Layout Objects app integrated into the solution, users can lay out straight from 3D models by selecting an object, like a column or pipe, simply by tapping on it in the controller and benefit from the flexible creation of layout work packages for effective work progress management. With the Leica iCR80 construction total station complex architecture can finally be completed with ease.

Never lose lock

The iCR80 comes with automated aiming ATRplus, which intelligently and automatically detects environmental conditions, such as light, dust, rain and other site conditions. The new ATRplus, lock and re-lock technology speeds aiming and following of targets and delivers accurate measurements independent of user aiming or site conditions. Even when used on busy construction sites, the down time resulting from loss of lock is minimal, speeding up significantly your layout task.

Automated set up

Stay confident and efficient with the most reliable, simple and automated set up routine. With no user interaction required, the intelligent Setup Pilot app orientates the total station with only the push of a button, allowing you to begin work almost immediately. The successful setup completion is visually communicated, indicating layout can begin.

Lowest total cost of ownership

Leica Geosystems construction total stations have a high value, giving you the lowest total cost of ownership. Its resilient hardware allows for longevity and reliability, giving you many years of rough usage in the most demanding environments. Its level of quality ensures your data remains accurate, lowers downtime and keeps your productivity high in all environments and conditions. Invest in the smarter total station solution and reap massive long-term rewards.
